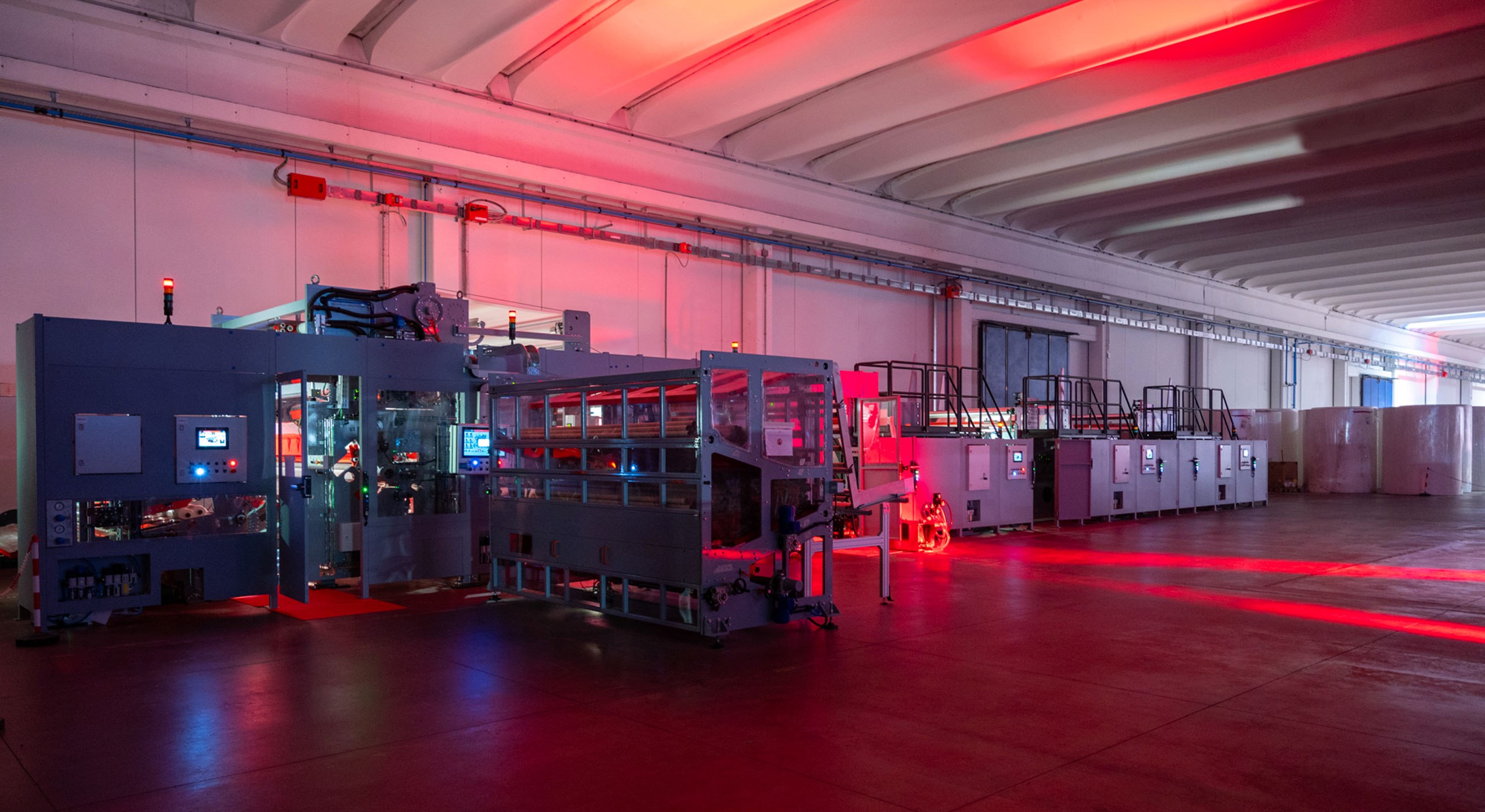

Tissue Converting Solutions
High-end tissue converting line for Consumer and Professional products.
Designed to save energy, maximize operational efficiency and enhance the quality of final products.
Complete certified line for “TRANSIZIONE 5.0”

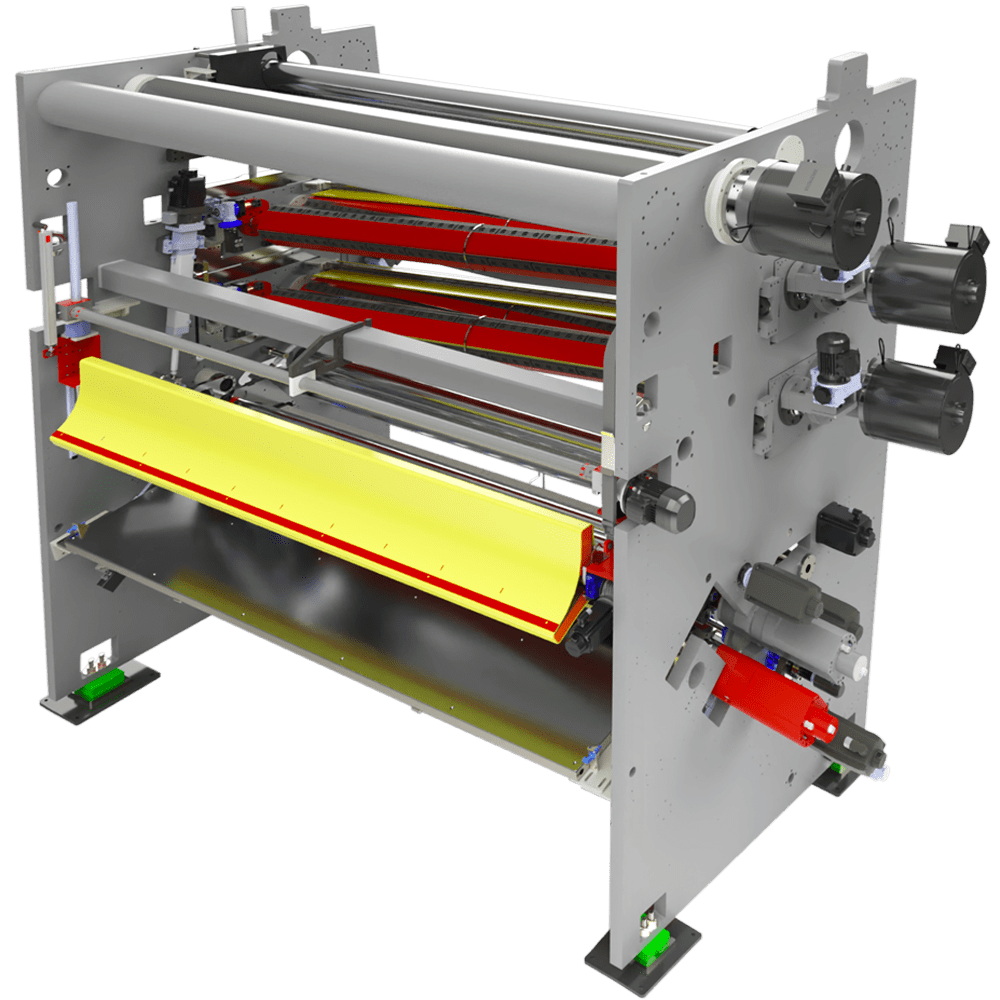

GENIUM REWINDER
Working speed up to 700 m/min
Roll diameter range 90–350 mm
Width from 2750 up to 3650 mm
PATENTED
Double rider rolls winding system, the log is controlled by three rolls
Uniform winding profile from the core to the last sheet
PATENTED
Cradles adjustable by HMI
Cradles are designed for wide core range:
from 20 to 80 mm
Easy and quick core change

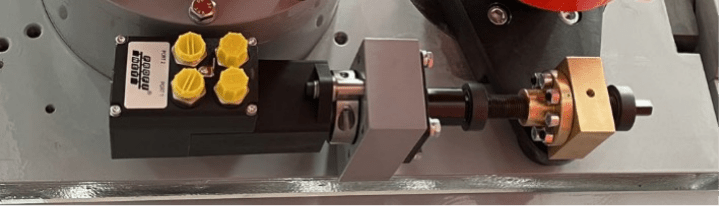

Double perforation system
2 Revolving Perforation rolls 6 blades each
2 Fixed Perforation rolls 4 blades each with axial movement
Perforation length range:
- 90-180 mm with 6 blades
- 180-360 mm with 3 blades
- 270-540 mm with 2 blades
Blades Gap Adjustable By Touch Panel
EMBOSSER

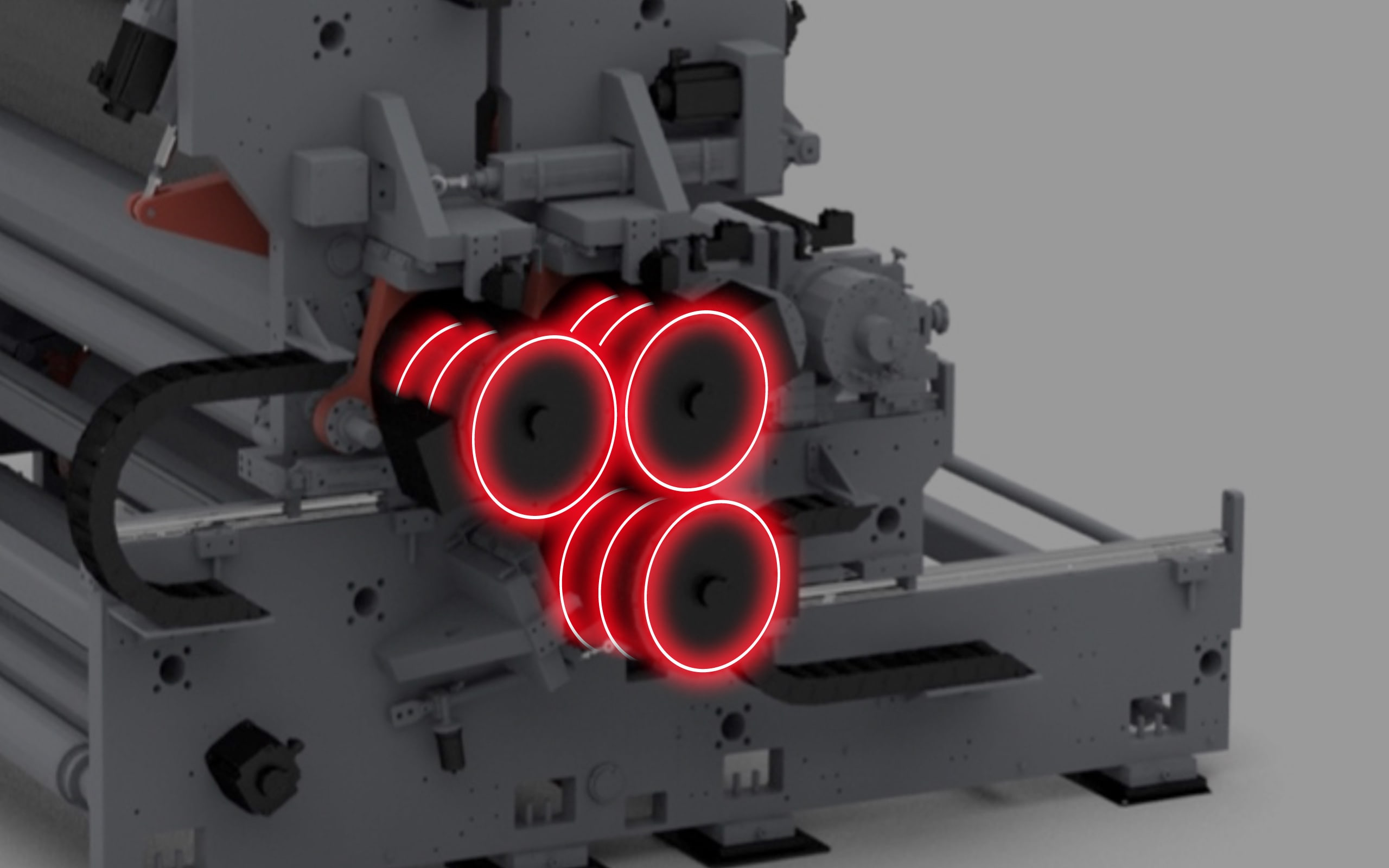

The newest embossing solution with 3 engraved steel rolls working simultaneously
Working speed up to 700 m/min
Width from 2750 up to 3650 mm
For 2/3/4/5/6 ply products
- Easy access for cleaning and maintenance
- Higher Safety: automatic change of steel rolls managed by HMI
- Upper steel roll change without paper break
- NIP and lamination control by HMI
High web thickness and extreme softness
- Total absence of hydraulics
- Feedback of embossing pressures on the HMI
- Lamination adjustment from the HMI panel
- No belts, reducers, or gears
- Automatic DESL phase and Tip-to-Tip adjustment from HMI
- Complete machine self-configuration via recipes
- Prepared for water lamination
- Simplified in-machine adjustments via mobile panel and safety controls
Reduction of energy consumption thanks to our technologies (torque motors, servo-controlled embossing control, ...).
LATEST GENERATION
TORQUE MOTORS
Consistent power, energy optimization and cost reduction
Energy reduction up to 15%
Connection coupling torque motor – roll with automatic phasing
Automatic roll engage for quick roll change
More precise control and higher efficiency

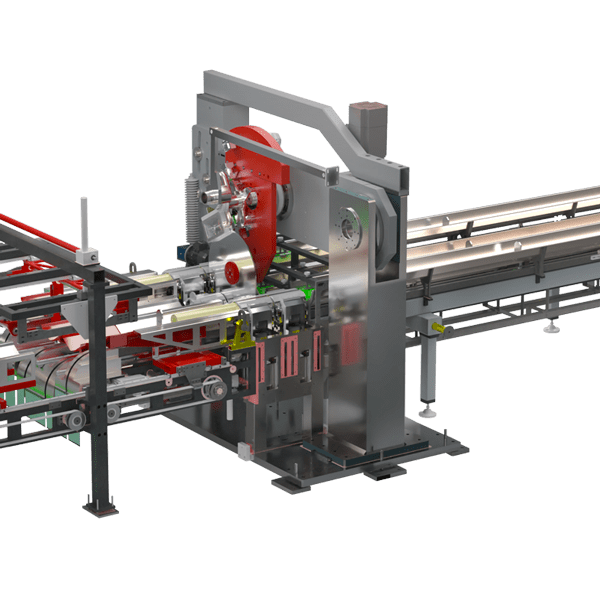

FOUR LANE
LOG SAW
Independent motorization
for each lane
Speed up to
240 cuts/min

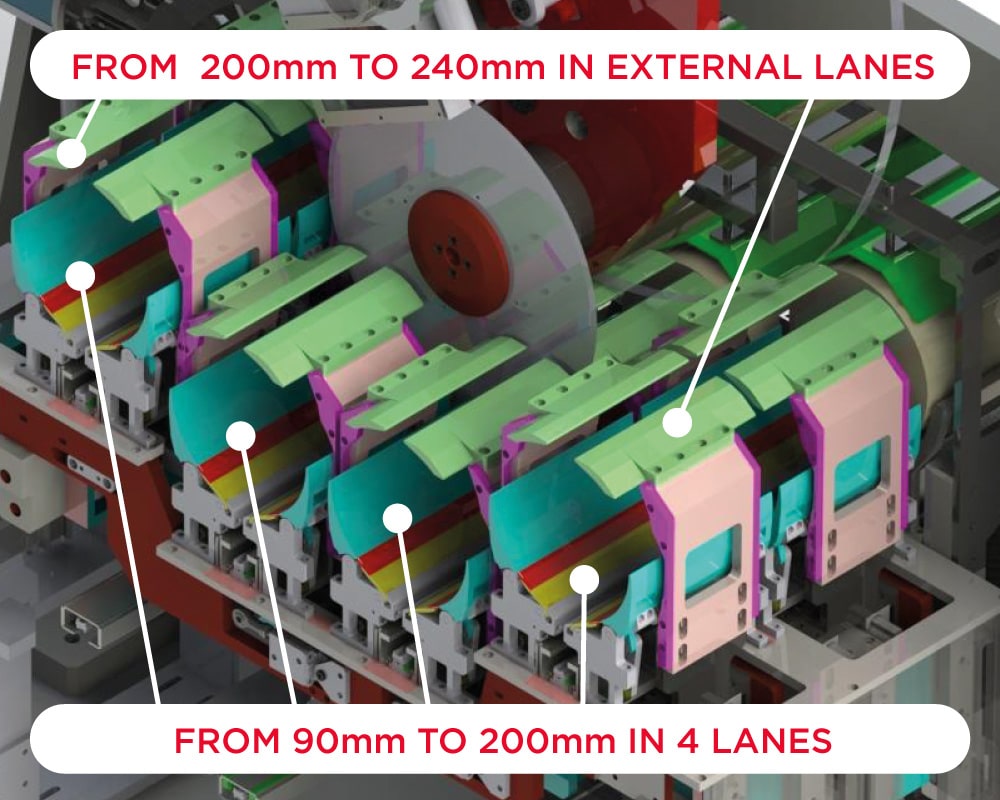

Universal clamps range
from 90 mm to 240 mm
No need to replace parts for different diameters
Independent motorization for each lane
Idle or motorized sharpening stones
Shuttle trim eliminator

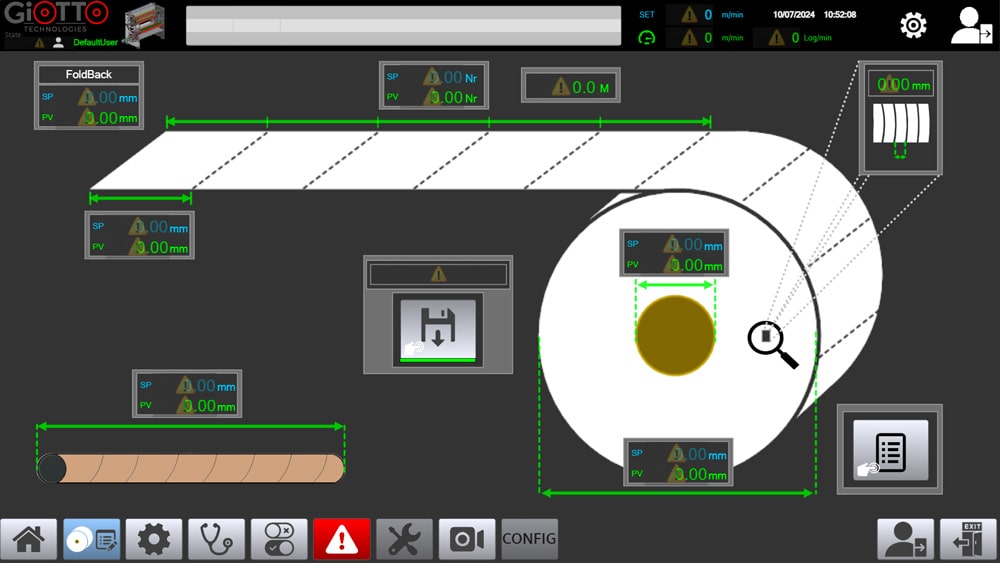

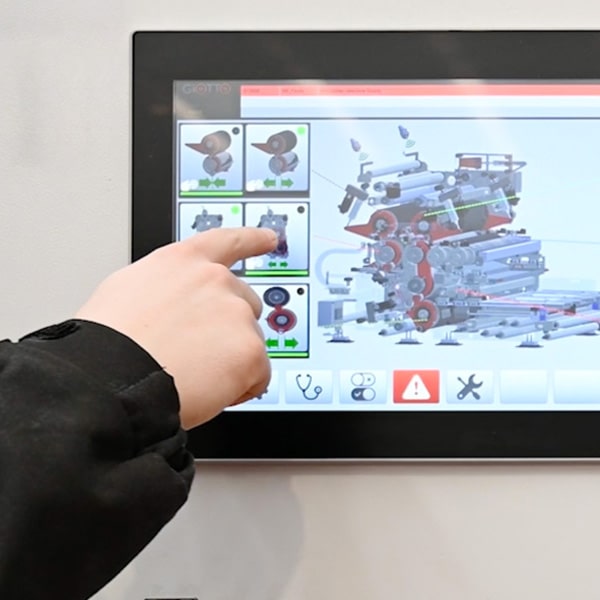

HMI
CONTROL PANEL
Remote access to individual production phase
User Friendly
All controls are easy to be managed
INNOVATION
Giotto Technologies R&D department stands out to createsustainable innovation throughout the converting processwith patented solutions.
CONSUMPTION
NOISE
COMPRESSED AIR
HYDRAULICS
