Tissue Converting Solutions
The newest embossing solution with 3 engraved steel rolls working simultaneously.
For 2/3/4/5/6 ply products
1 machine, 8 different lamination solutions
EMBOSSER
The newest embossing solution with 3 engraved steel rolls working simultaneously
Working speed up to 700 m/min
Width from 2750 up to 3650 mm
For 2/3/4/5/6 ply products
- Easy access for cleaning and maintenance
- Higher Safety: automatic changeof steel rolls managed by HMI
- Upper steel roll change without paper break
- NIP and lamination control by HMI
High web thickness and extreme softness

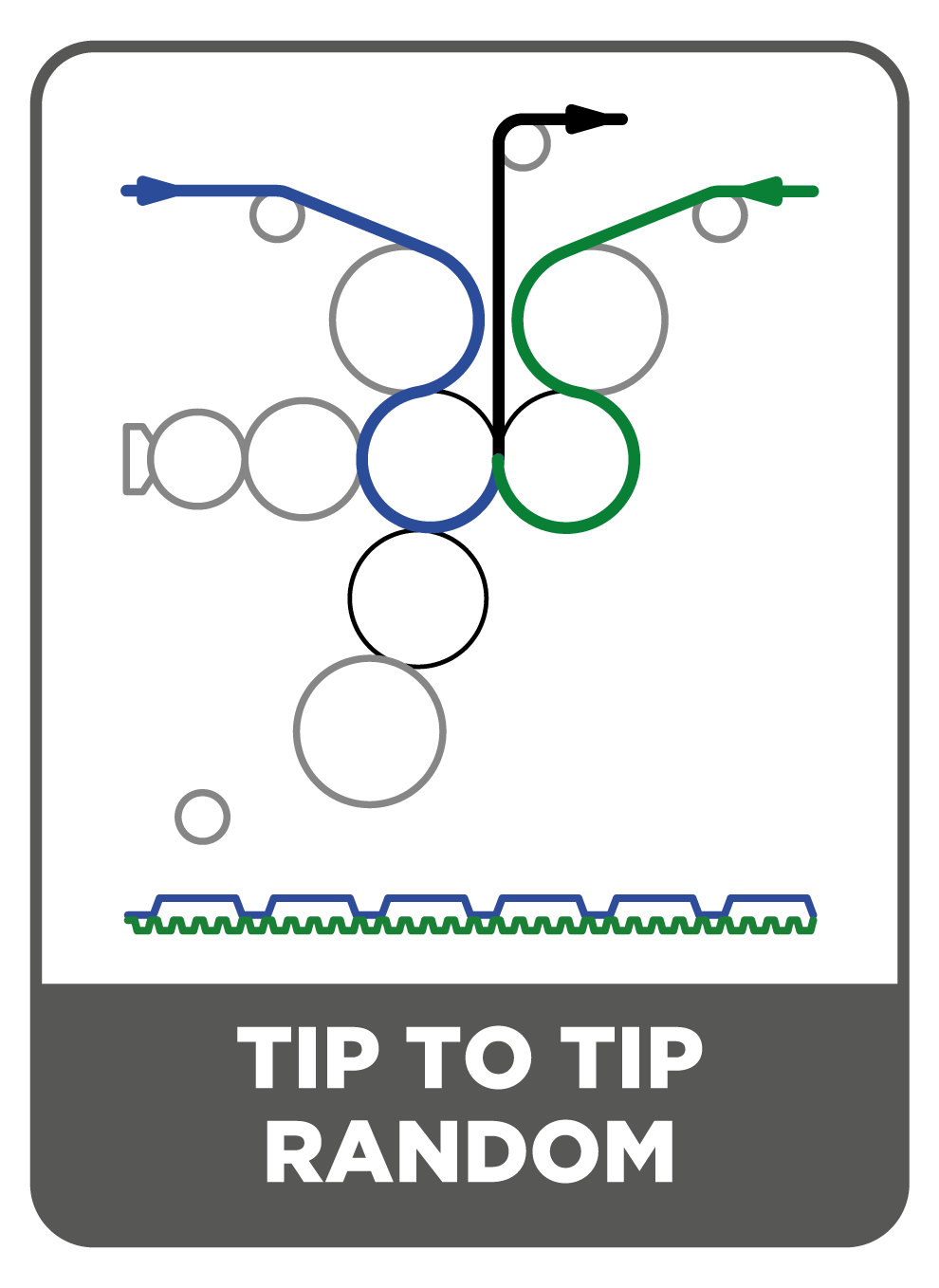

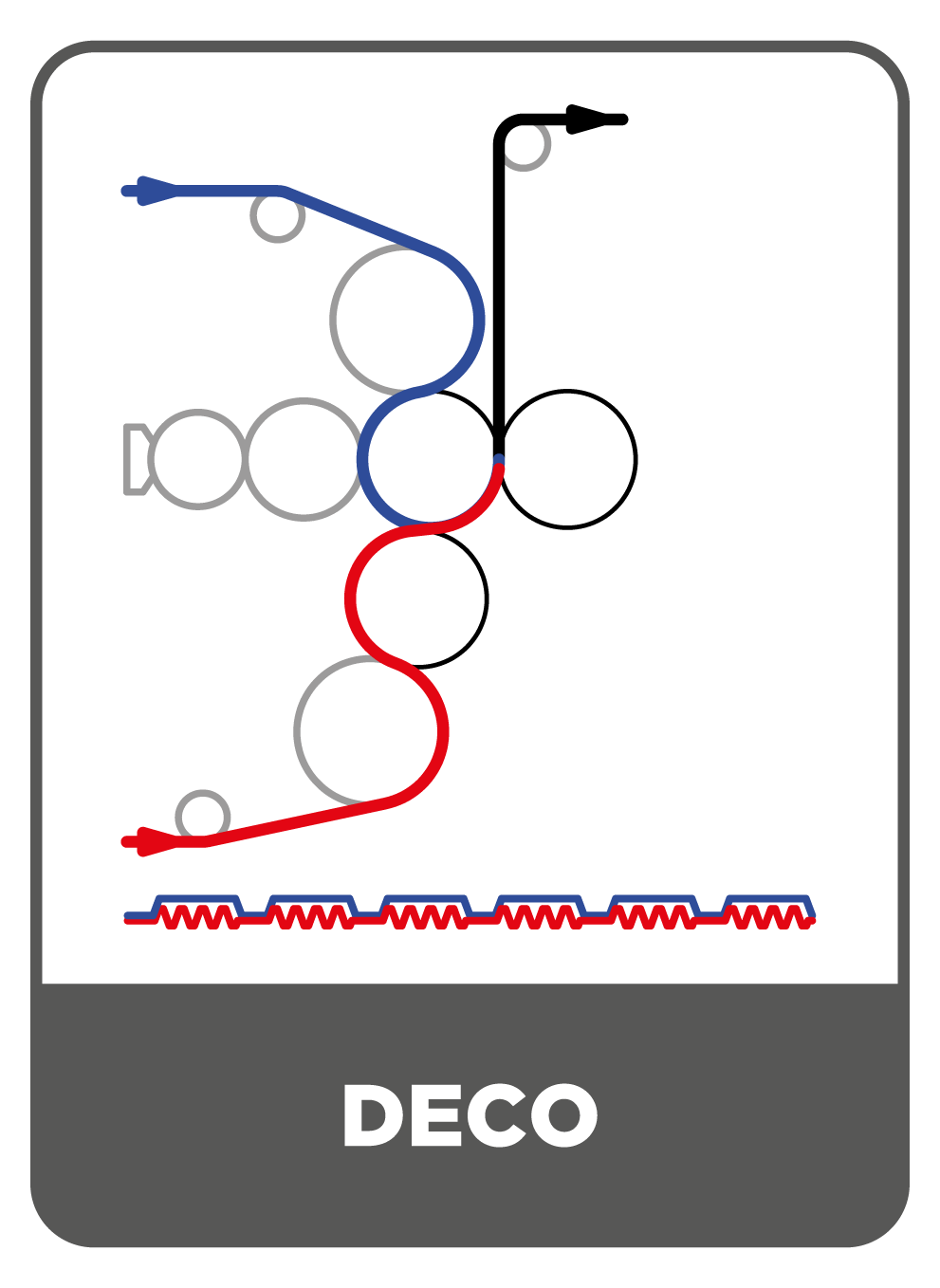

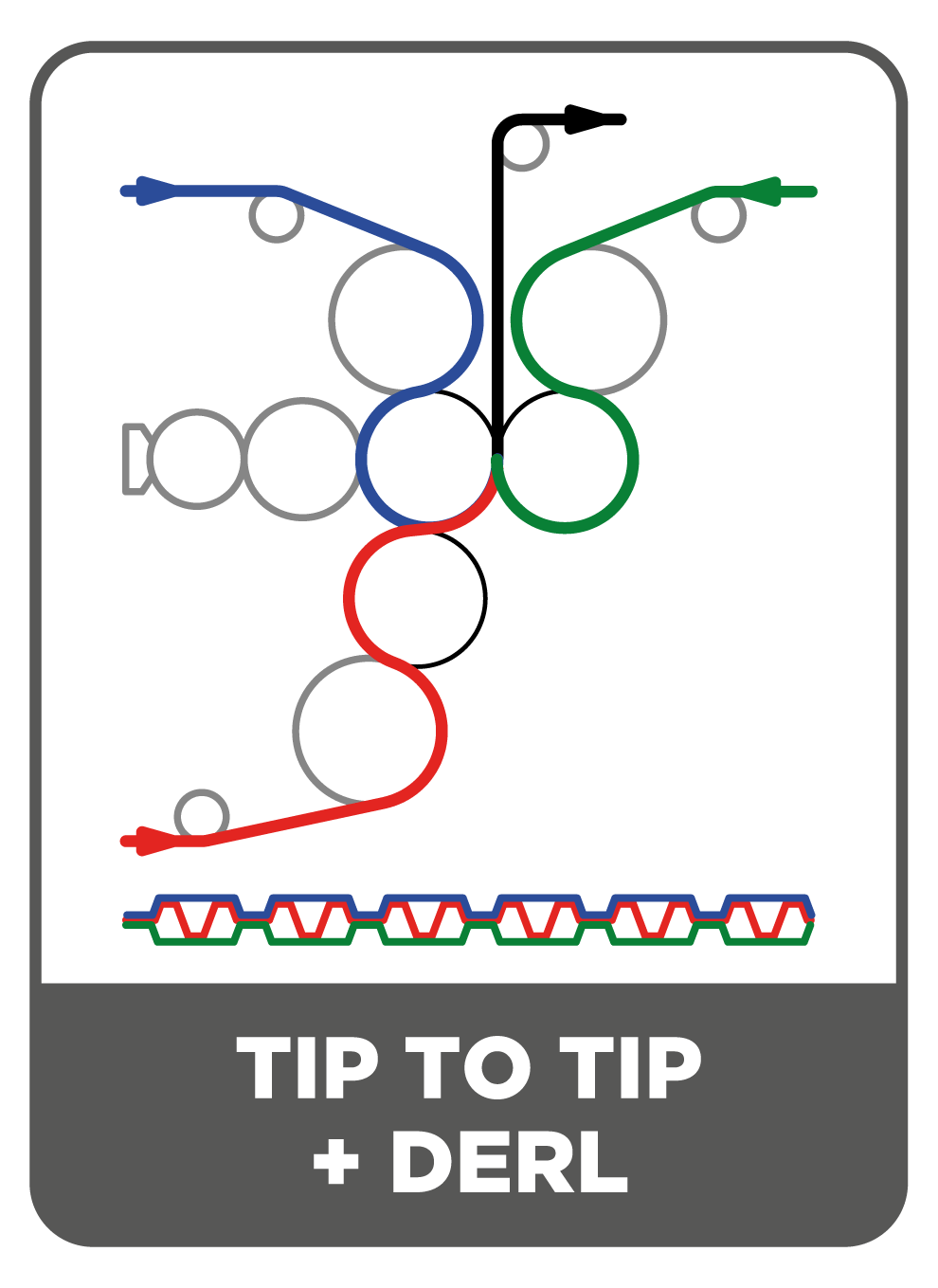

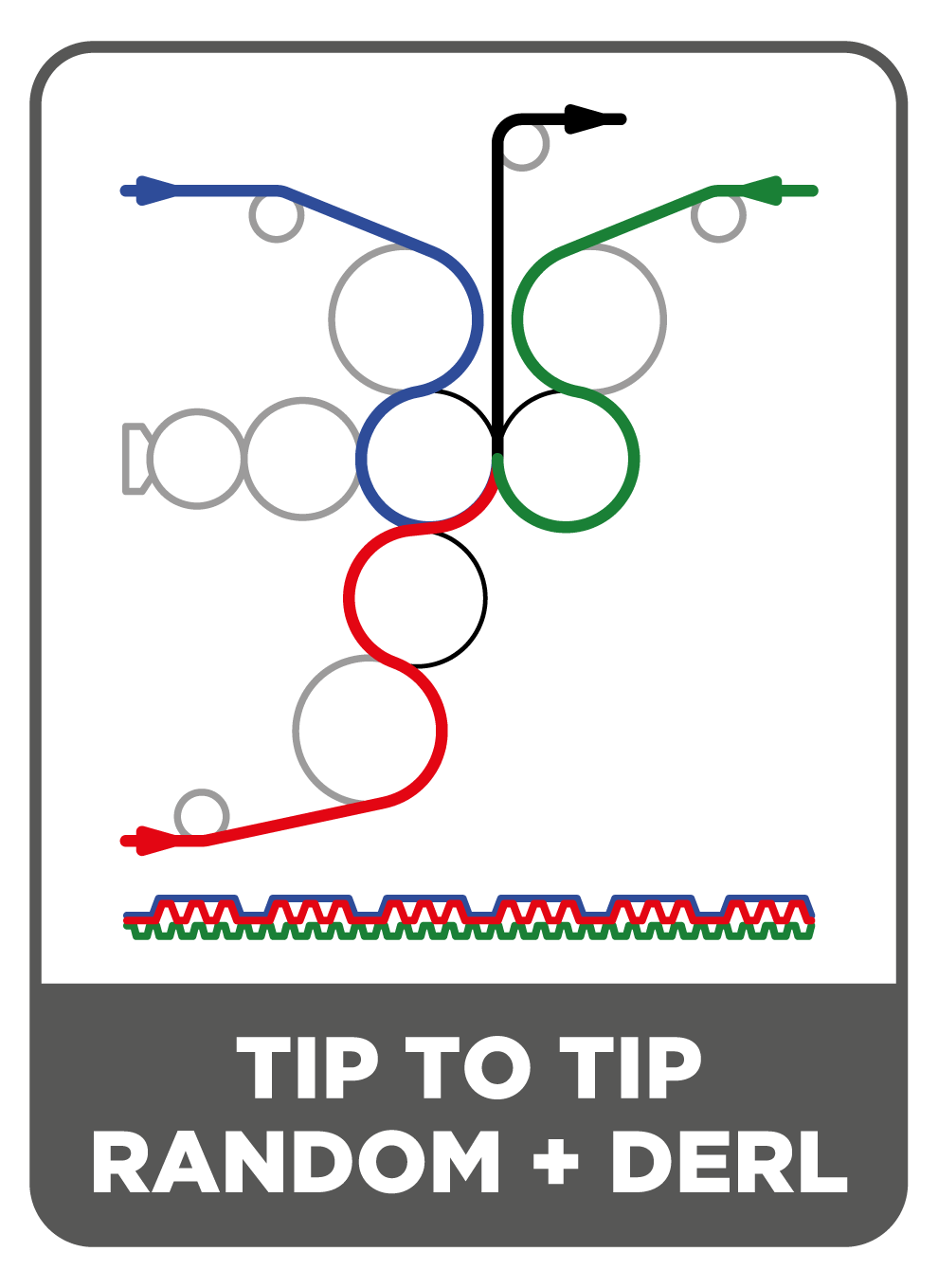

Multiple embossing type configurations:
one machine, 8 different lamination solutions
LATEST GENERATION
TORQUE MOTORS
Consistent power, energy optimization and cost reduction
Energy reduction up to 15%
Connection coupling torque motor – roll with automatic phasing
Automatic roll engage for quick roll change
More precise control and higher efficiency
FOUR LANE
LOG SAW
Independent motorization
for each lane
Speed up to
240 cuts/min
Universal clamps range
from 90 mm to 240 mm
No need to replace parts for different diameters
Independent motorization for each lane
Idle or motorized sharpening stones
Shuttle trim eliminator
HMI
CONTROL PANEL
Remote access to individual production phase
User Friendly
All controls are easy to be managed
INNOVATION
Giotto Technologies R&D department stands out to createsustainable innovation throughout the converting processwith patented solutions.
CONSUMPTION
NOISE
COMPRESSED AIR
HYDRAULICS
